Gear Processing Machine
Gear Honing Machine
Product Information
machine tools
FX260
Gear Honing Machine Product List
Achieve the difficult task of machining multi-stage gears! Contribute to improved productivity!
Features
-
High speed rotation of the grinding wheel allows for machining with small cross angles
-
Reduce running costs and variation in work quality
Achieves the world's highest grinding wheel speed of 63m/s and a crossing angle of 2°. Reduces cycle time.
It is possible to process stepped gears that cannot be processed by gear grinding machines.
Uses mineral casting with excellent vibration damping and thermal displacement properties
Increased number of dress intervals
Completely synchronized control of the grinding wheel spindle (C1) and work spindle (C2)
High-precision tooth surface finishing is achieved by the combined movement of each slide (X, Y, Z).
Double-supported grinding head for increased rigidity
Direct spindle improves synchronization accuracy and achieves a maximum rotation speed of 3,000 min-1
Encoder on the grinding wheel head rotation axis (A axis) improves positioning accuracy
Teeth alignment possible with the push of a button
Reduced variation in setup change quality
specification
| Maximum workpiece outer diameter (mm) | 260 |
|---|---|
| Maximum workpiece face width (mm) | 50 |
| Maximum workpiece length (mm) | 350 |
| Workpiece Module | 1.0 - 4.0 |
| Maximum workpiece rotation speed (min-1) | 10,000 |
| Wheel spindle rotation speed (min-1) | 3,000 |
| Wheel outer diameter (mm) | 400 |
| Floor area Width x depth x height (mm) | 4,300×4,140×3,020 |
| Machine weight (kg) | 11,000 |

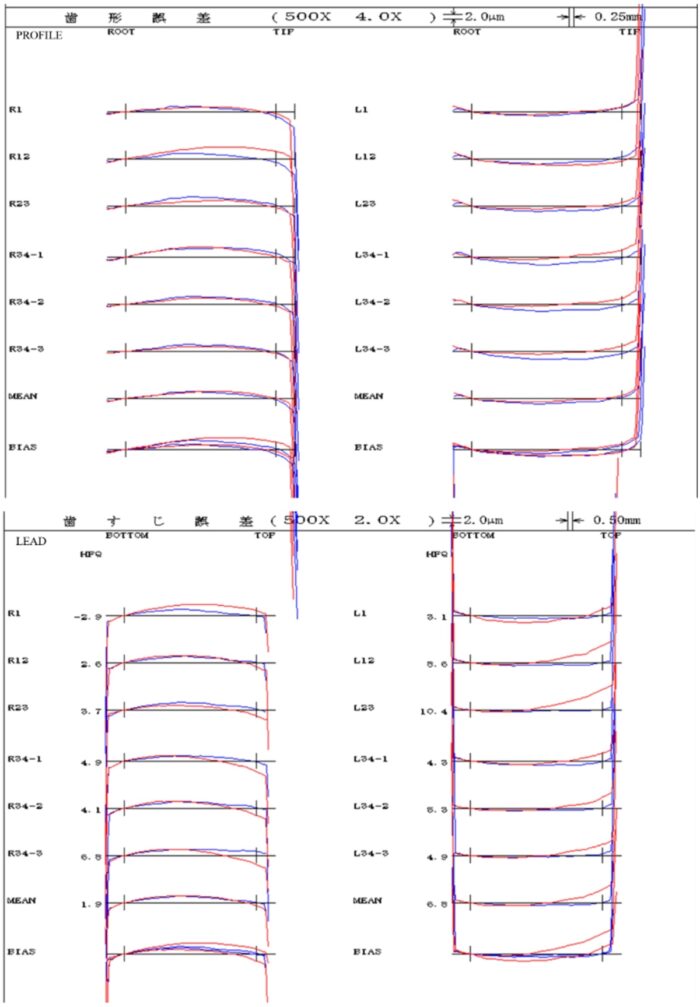

Machining accuracy (example)
