FD300/FE300

Best-selling gear honing machine ideal for in-line production

Features

Take synchronous gear honing machines to the next level
A built-in motor is used for the grinding wheel, making the grinding wheel head more compact.
Improved structure of table and headstock reduces overall machine space

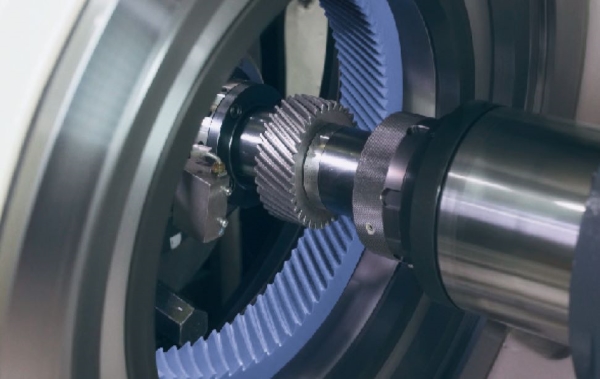

Processing position

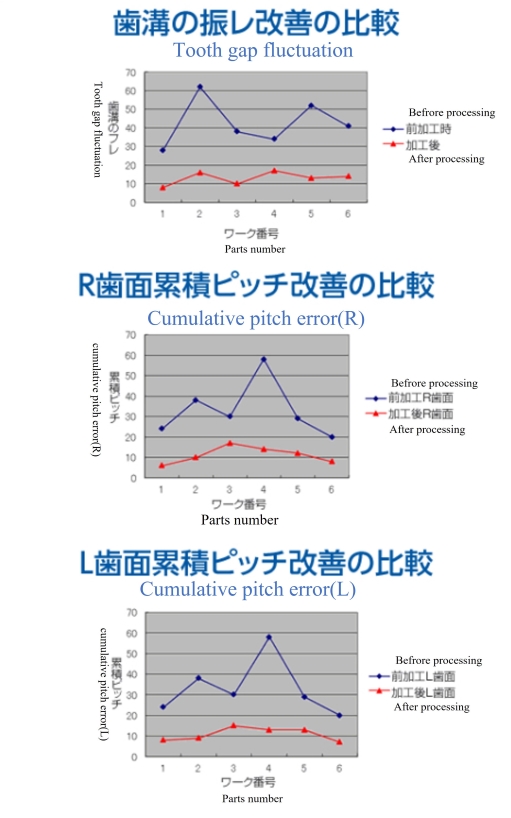

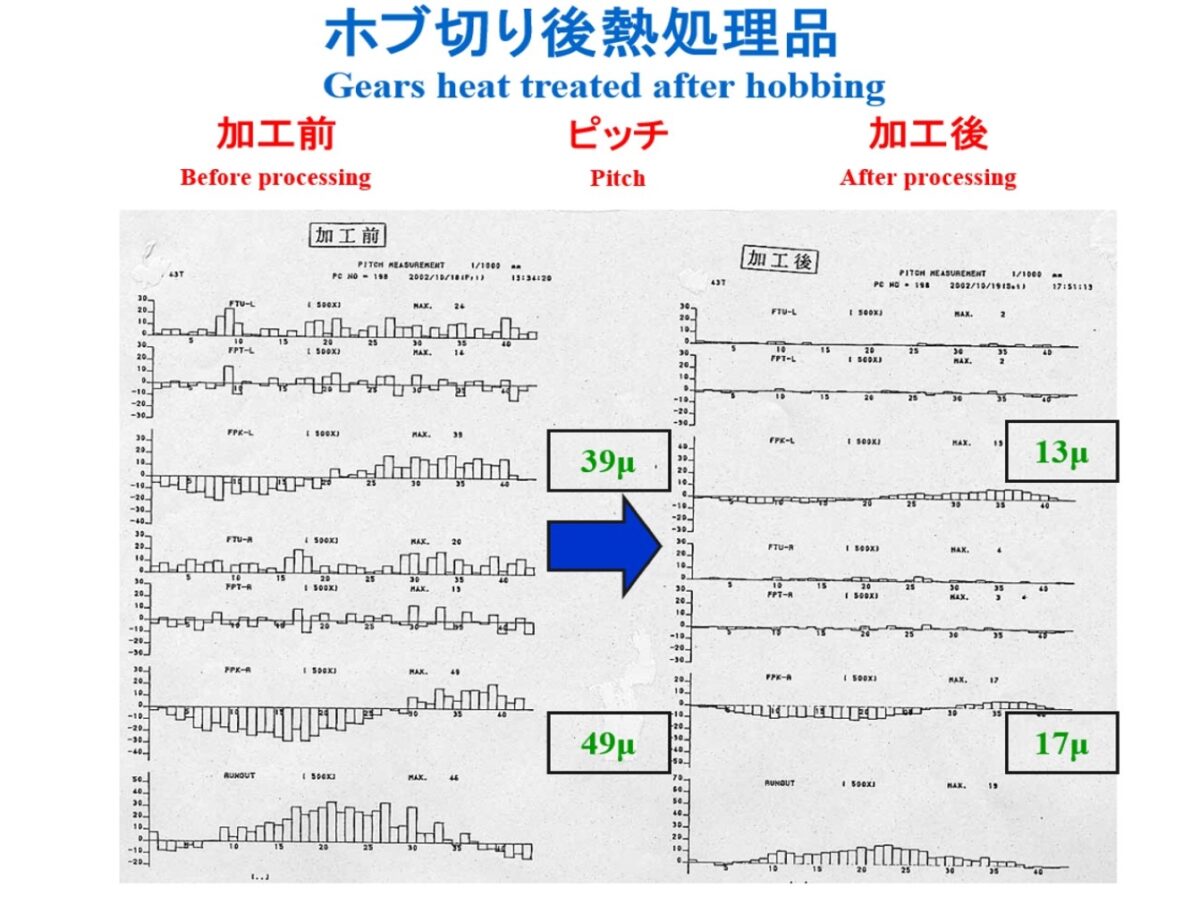

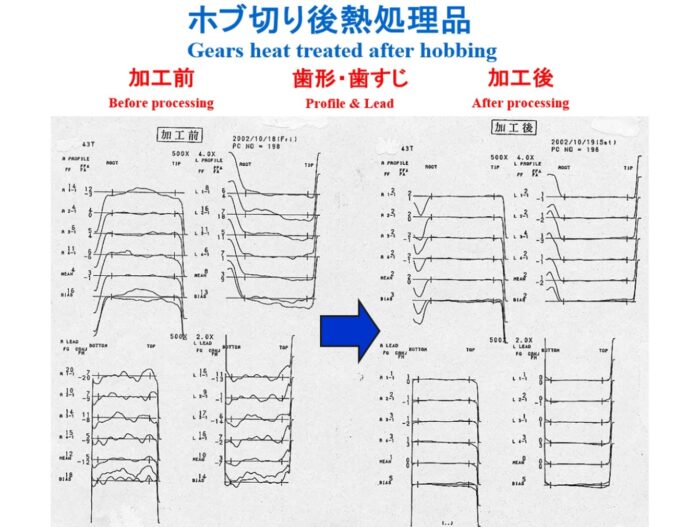

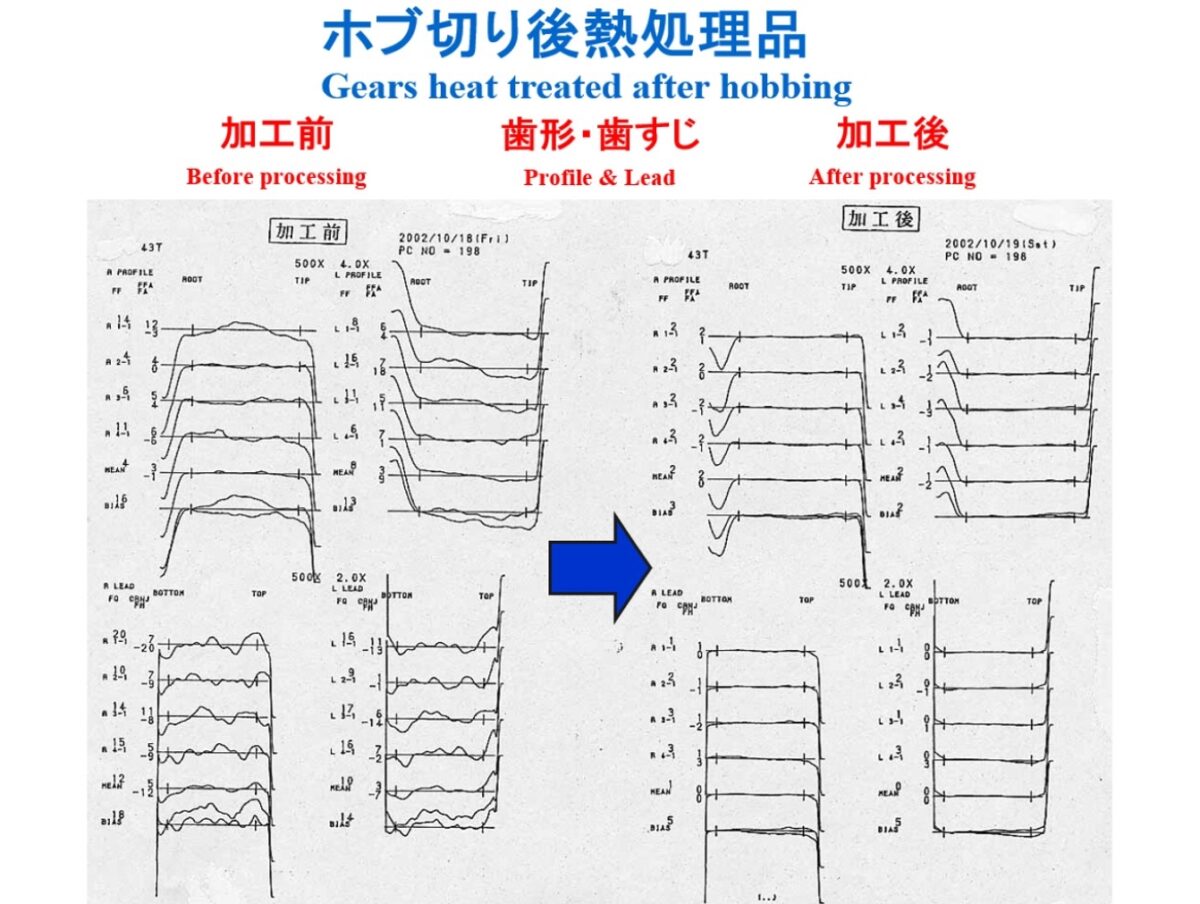

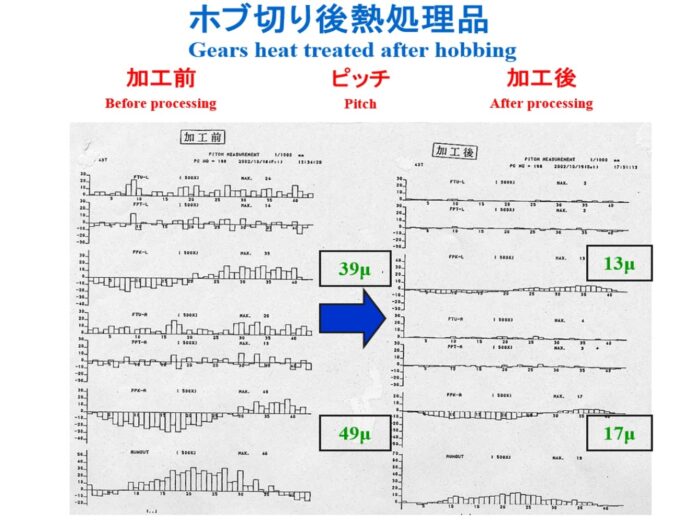

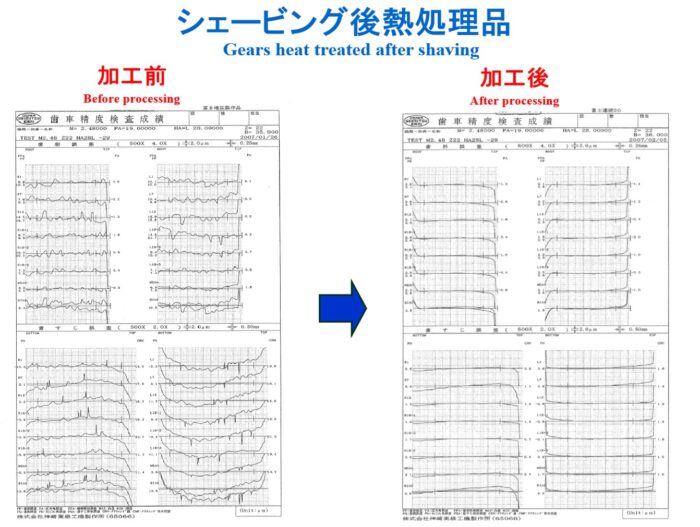

Improved synchronization accuracy by adopting grinding wheel axis encoder

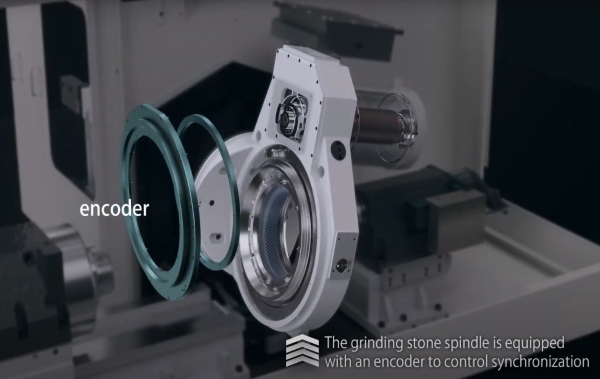

A synchronous control encoder is installed on the grinding wheel rotation axis, eliminating the effect of backlash between the drive motors and further improving synchronization accuracy.
Consideration of the working environment

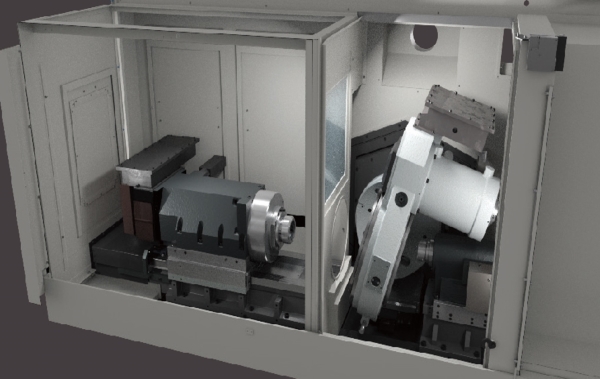

By dividing the machining chamber and the workpiece attachment/detachment chamber, workpieces can be replaced without stopping the grinding wheel rotation.
Eliminating the start-up and stop time of grinding wheel rotation contributes to shortening non-cutting time
In addition, the efficiency of mist treatment is improved by localizing the processing chamber.
Robot automatic transport

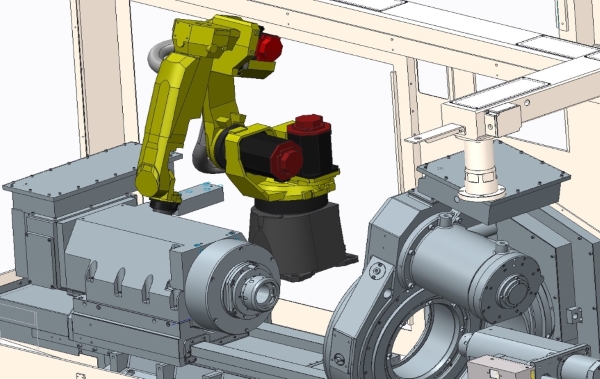

A workpiece changing robot is installed inside the machine, allowing workpieces to be changed during processing.

Part number	FD300	FE300
method	Synchronous	Asynchronous
Maximum workpiece outer diameter (mm)	300	300
Maximum workpiece face width (mm)	50	50
Maximum workpiece length (mm)	350	350
Workpiece Module	1.0 - 4.0	1.0 - 4.0
Maximum spindle speed (min-1)	8,000	-
Maximum workpiece rotation speed (min-1)	1,500	1,500
Wheel outer diameter (mm)	400	400
Floor area Width x depth x height (mm)	2,800×2,730×2,650	2,800×2,730×2,650
Machine weight (kg)	7,500	7,500
