GB260
Gear grinding machine product list
The newly developed multiple columns improve workability and reduce changeover time.
Features
-

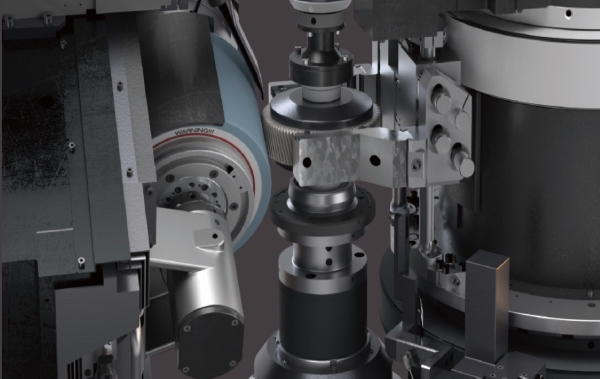

Achieve flexible machining of a variety of workpieces with high-speed cutting
High-speed gear phase indexing and workpiece changer significantly reduce non-cutting time, and also support shaft gears
The indexing function at the machining position is now as fast as possible (1 sec)

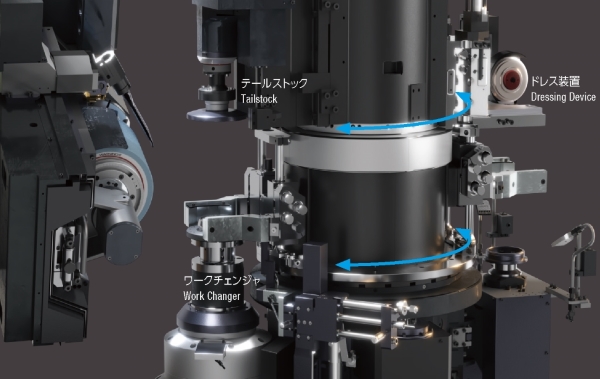

Upper: tailstock, dressing device, lower: work changer, interchangeable on a common rotating shaft
Both the tail stock and the dressing device can be moved to the work loading/unloading surface, shortening the changeover time and improving workability.

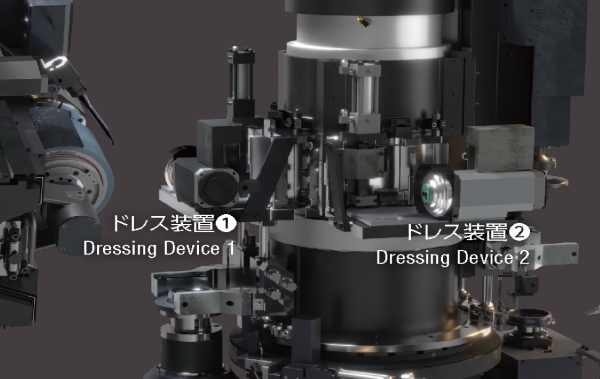

Two dressing devices can be installed, and tool change and adjustment are unnecessary, reducing changeover time.
Also, different types of dressing devices can be installed.
specification
| Maximum workpiece outer diameter (mm) | 260 |
|---|---|
| Maximum workpiece face width (mm) | 50 |
| Maximum workpiece length (mm) | 200 |
| Workpiece Module | 0.6 to 4.0 |
| Maximum workpiece rotation speed (min-1) | 3,000 |
| Wheel spindle rotation speed (min-1) | 8,000 |
| Wheel outer diameter (mm) | 275 |
| Floor area Width x depth x height (mm) | 3,940×2,220×3,010 |
| Machine weight (kg) | 10,000 |

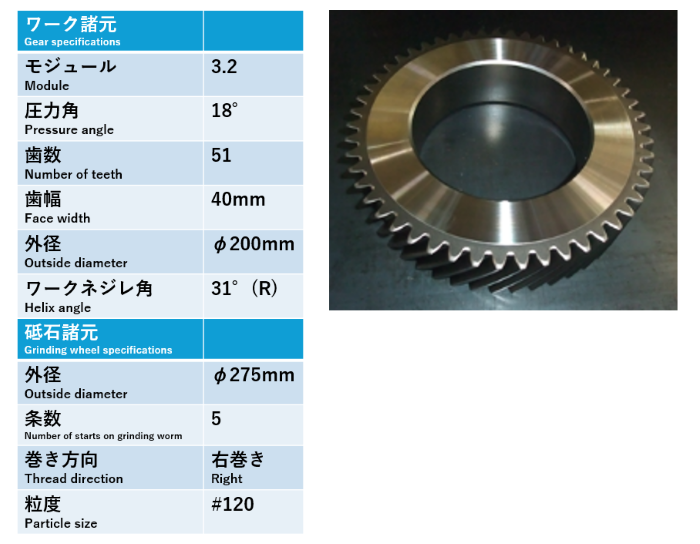

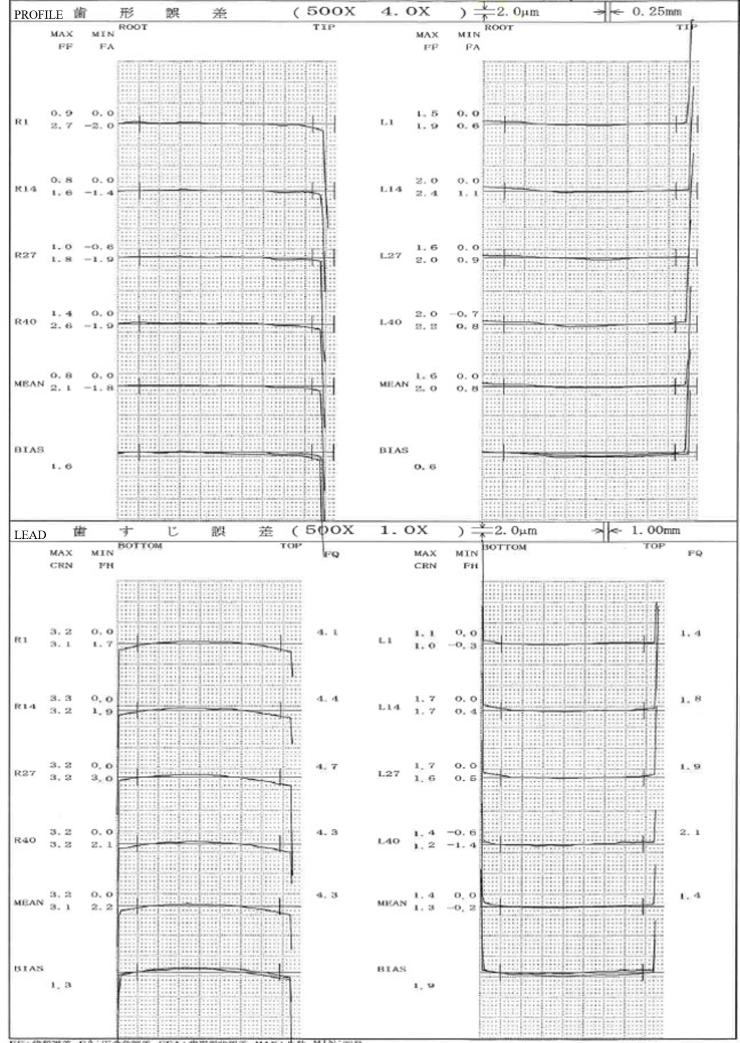

Machining accuracy (example)
