GB150

Gear grinding machine product list
GB150
Used for finishing gear grinding with an outer diameter of φ150 or less

Features

  • Achieves industry-leading smallest machine space for a machine with the same specifications

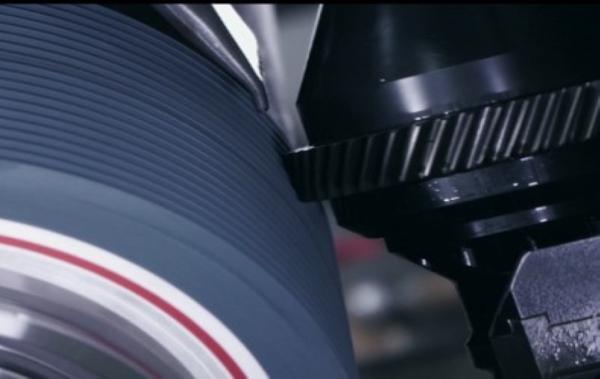

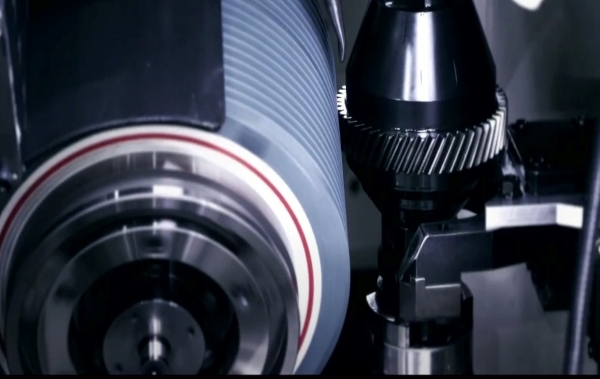

■Processing position
■High-speed gear phase indexing
The indexing function at the machining position is now as fast as possible (1 sec)

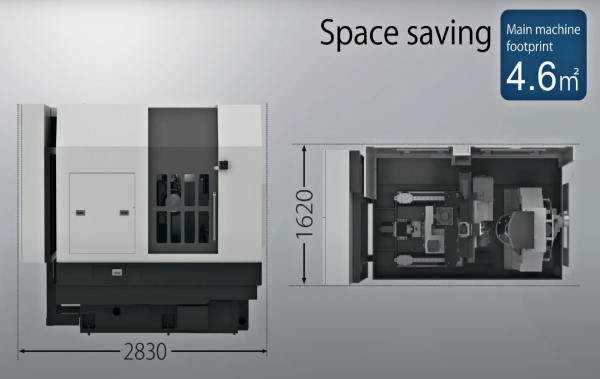

■Industry's smallest space-saving design
Compact design saves space and contributes to line downsizing
The simple structure also demonstrates its strengths in terms of cost.

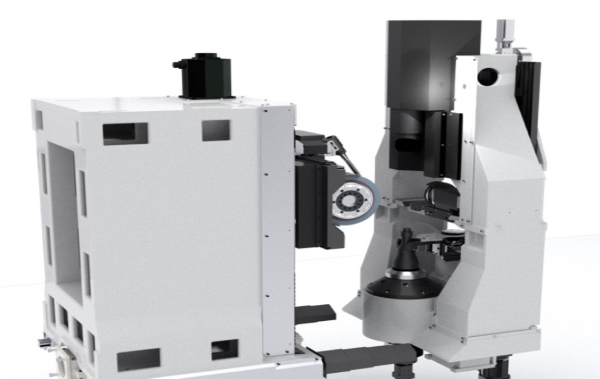

■ Column structure
Kanzaki's unique gate-type column is used, realizing workpiece replacement in a space-saving manner.
In addition, the rotary dresser and dressing gear (optional) allow grinding wheels to be shaped.
Flexible handling of a wide variety of workpieces is possible

specification

Maximum workpiece outer diameter (mm) 150
Maximum workpiece face width (mm) 50
Maximum workpiece length (mm) 100
Workpiece Module 0.6 to 4.0
Maximum workpiece rotation speed (min-1) 2,000
Wheel spindle rotation speed (min-1) 8,000
Wheel outer diameter (mm) 275
Floor area Width x depth x height (mm) 1,800×3,350×2,510
Machine weight (kg) 7,000

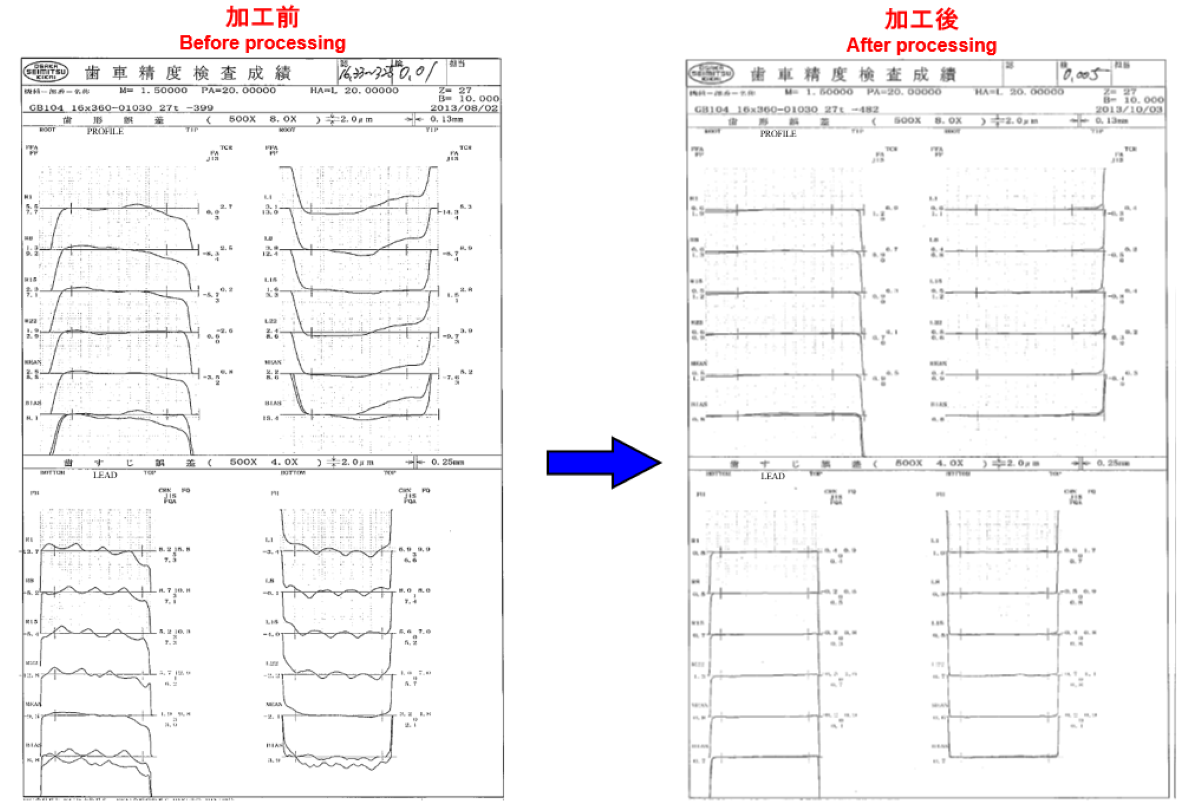

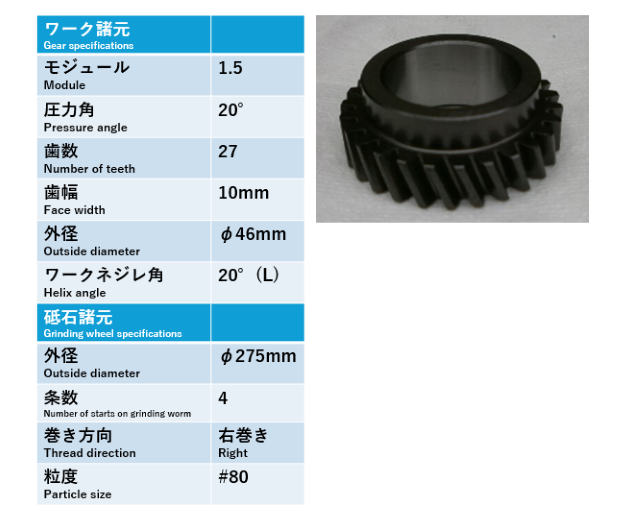

Machining accuracy (example)
