KM4A-2

Marine gear product list
Marine Gear for ships

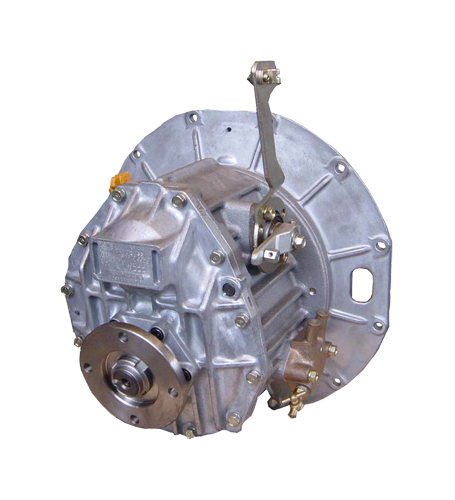

KM4A-2

Features

Marine gear developed for pleasure use (sailboats)

specification

Clutch Type Mechanical servo cone clutch (angle drive)
Input torque (Nm) 241 (@3,200 rpm)
Reduction ratio (forward) 1.47:1
2.14:1
2.63:1
Reduction ratio (reverse) 1.47:1
2.14:1
2.63:1
Rotation direction (input shaft) Counterclockwise
Output shaft (as seen from the stern) Clockwise or counterclockwise (forward)
Counterclockwise or clockwise (reverse)
oil SAE #20/#30 (single grade)
Oil capacity (L) 3
Dry weight (kg) 28.5
Standard Flange SAE #4
