CA100

Expanded product lineup for gear cutting machines

Features

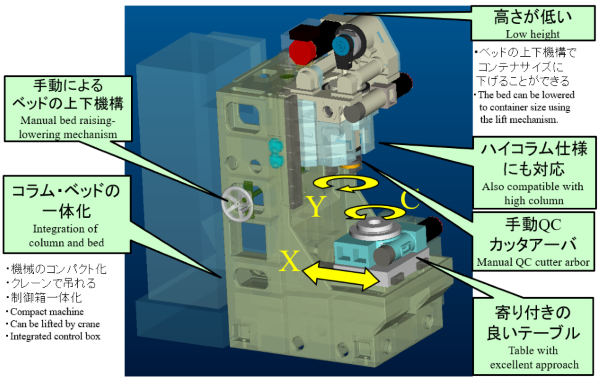

A space-saving, multi-purpose machine with integrated functions

Can be equipped with a transport device suitable for in-line use
The column-integrated structure makes it easy to transport the machine.
Easy to insert into the processing position for good workability (front of cover - processing position 365mm)
Manual HSK taper cutter arbor

Ensures repeatability of installation accuracy through replacement
Processing position
Consolidating necessary functions to save energy
Space saving

method	Outer teeth
Maximum workpiece outer diameter (mm)	100
Maximum workpiece face width (mm)	32
Maximum stroke length (mm)	40
Maximum workpiece module	4
Maximum spindle stroke speed (str・min-1)	1,500
Floor area Width x depth x height (mm)	1,250×2,200×1,900
Machine weight (kg)	4,500
