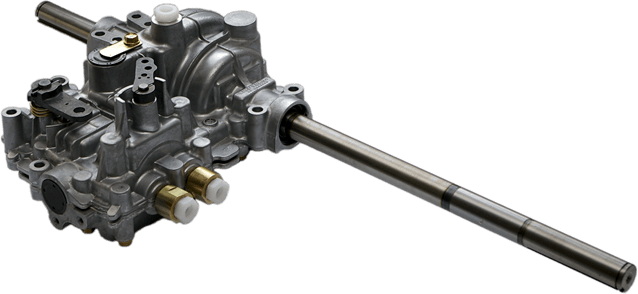

Hydraulic motor unit for Lawn Mower KTM10
Hydraulic motor unit driving by separated pump and pipe
- Features
-
- Compliant with rear discharge chute
- Brake, differential and bypass valve are standard
Specifications
| KTM10 Fixed | KTM10 Variable | |
|---|---|---|
| Motor swash plate type | Fixed | Variable |
| Rated Axle Output (N・m) | 231 | |
| Motor displacement (cc/min-1) | 10 | 8～13 |
| Reduction ratio | 20.5:1 | 24.0:1 |
| Weight (Dry) (kg) | 13.0 | |
| Max. Vehicle Weight (kg) | 400 | |
| Axle shaft size (mm) | 25.4 | |
| Max. tire size (inch) | 18 | |
| Brake | Wet disk | |
| Brake Capacity (N・m) | 388 | |
| Bypass valve | Standard | |

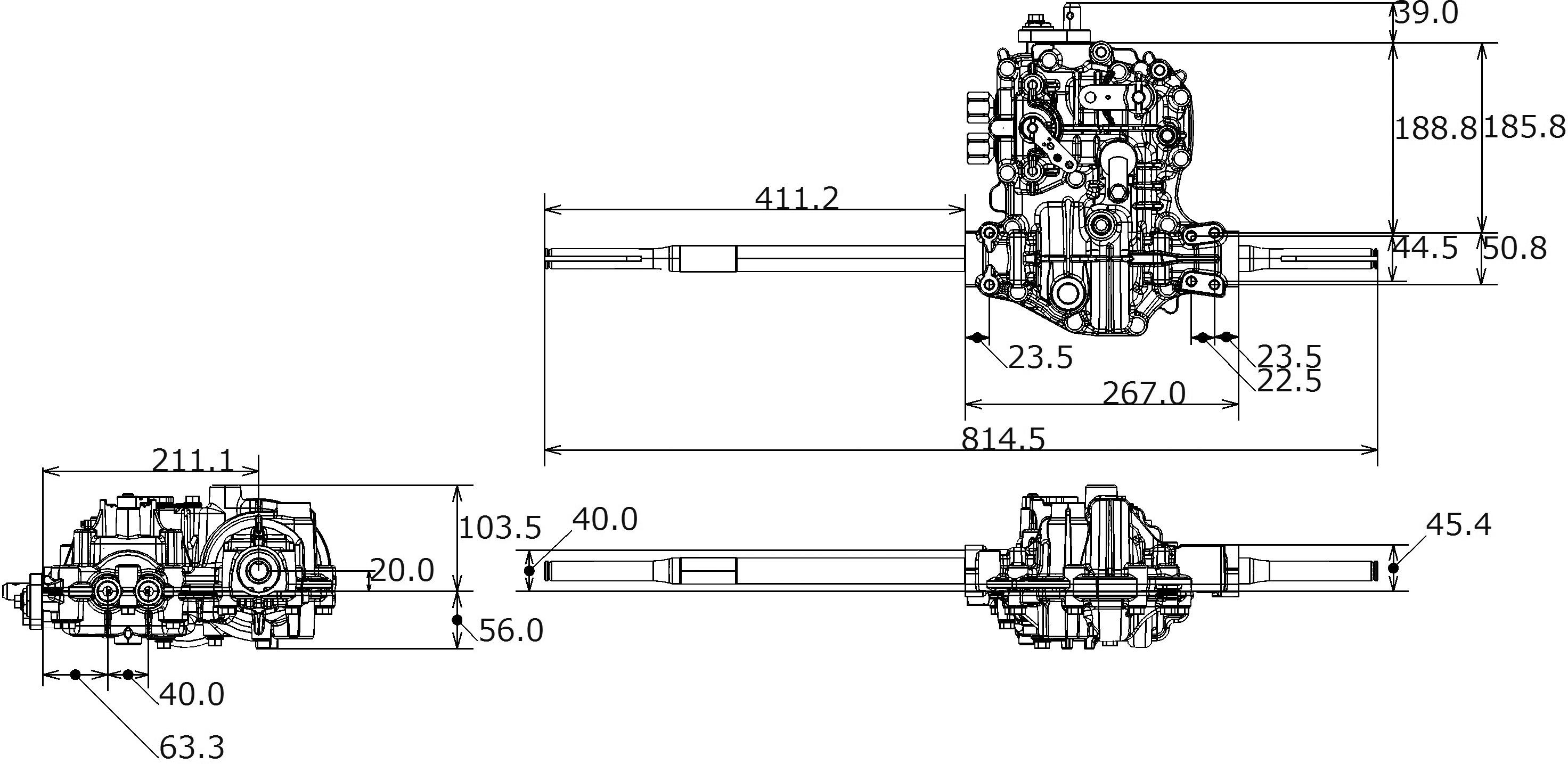

Drawing
