HST (Small Size / Center Distance 85mm)
HST for light duty
- Features
-
- Small type (Center Distance 85mm)
- Neutral detent mechanism (option)
- In case of the center distance is same, they are compatible with each other
Specifications
 KHS-18 |
 KHS-23 |

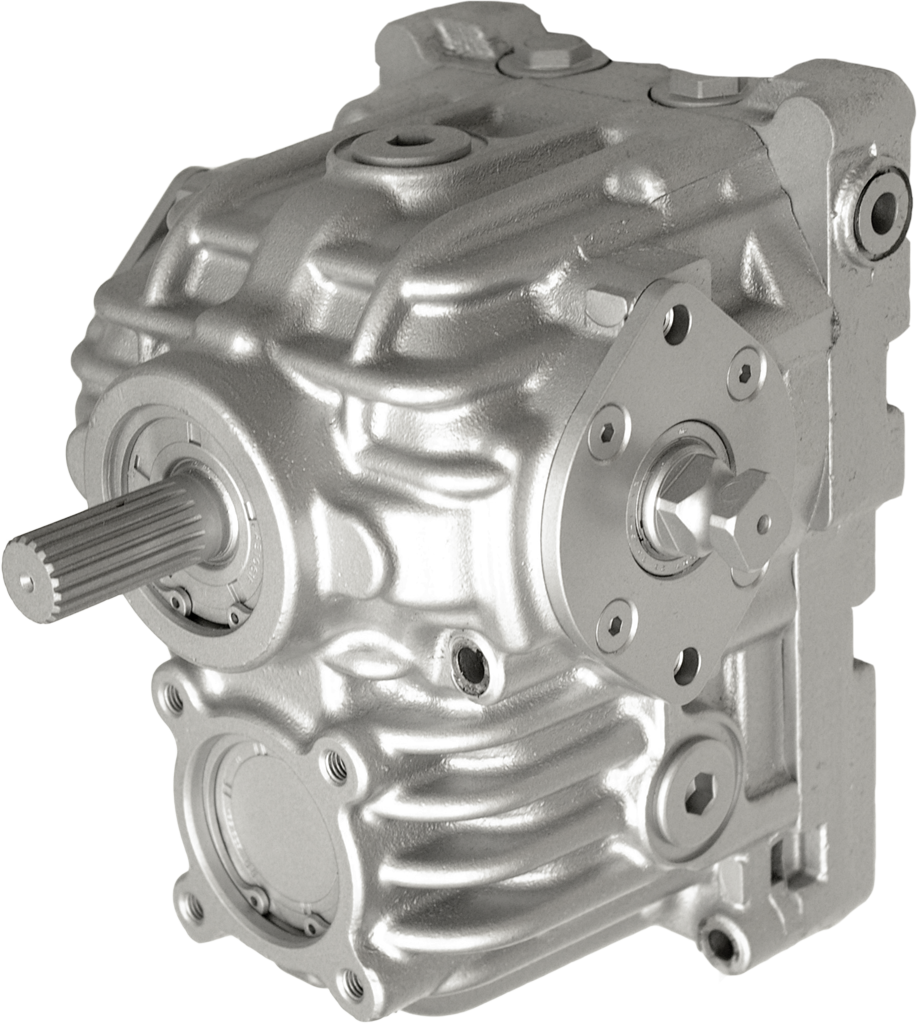

 KH-24 |
|
|---|---|---|---|
| Piston Type | Shoe Less Type | Shoe Type | |
| Pump Displacement (cc/rev) Pump (Variable) Motor (Fixed) |
0～18.1 18.1 |
0～23.0 23.0 |
0～24.0 24.0 |
| Input Speed (min-1) Max. Min. |
3,200 900 |
||
| Momentum Peak Pressure (MPa) | 24.5 | 34.3 | |
| Recommended Charge Flow Rate (L/min) | More Than 10 | More Than 12 | More Than 14 |
| Port Size (Charge Suction) | G1/4 | ||
| Port Size (Drain) | G3/8 | G1/2 | |
| Swash Plate Operation | Manual | ||
| Input/Output Shaft Diameter (mm) | 17 | 20 | |
| Distance Between The Shafts (mm) | 85 | ||
| Dry Weight (kg) | 13.5 | 15.0 | |
| Recommended Filter Size (μm) | 10 | ||
| Oil | ISO VG46 | ||
| Relief Valve Setting Pressure (MPa) | 24.5 | - | |
| Installed Charge Pump Capacity (cc/rev) | - | ||
| Neutral Detent Mechanism | - | N/A or Exterior Style | |
